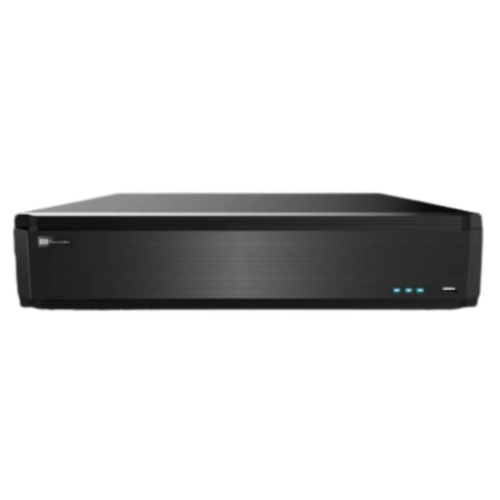

32CH | 8MP | 8 SATA | HDMI/VGA | iOS/Android | 16 RCA Audio Inputs | 16/8 Alarm IO
Ensure unmatched security and reliability with this cutting-edge 32-Channel DVR. Designed for both analog and IP camera systems, this DVR delivers seamless performance with robust features to meet your surveillance needs.
Key Features:
- High-Efficiency Compression: Supports H.265/H.264 for optimized storage and bandwidth usage.
- Dual Input Compatibility:
- Analog: 32CH BNC for TVI/AHD/CVI cameras, up to 8MP (4K) at 15fps.
- IP: Expandable to 16 channels, up to 8MP resolution.
- Crystal-Clear Video Output:
- HDMI: 4K
- VGA: 1080p
- BNC: CVBS
- Enhanced Audio: 16CH RCA audio inputs, 1CH RCA output, and 2-way audio for real-time communication.
- Smart Alarm System: Features 16 alarm inputs and 8 outputs, with advanced modes like manual, motion, exception, and smart events.
- Advanced Recording & Playback:
- Analog recording up to 4K@8fps.
- IP recording up to 4K@30fps
- Intelligent playback with time/event/tag search and color-coded smart search for quick identification.
- Functions include play, pause, fast forward/backward, and digital zoom.
- High-Speed Networking: RJ45 1000Mbps interface, supporting up to 20 users online and protocols like TCP/IP, RTSP, and more.
- Storage Versatility: 8x SATA support with a maximum of 10TB per HDD and RAID support.
- User-Friendly Connectivity: USB 2.0 and USB 3.0 interfaces, RS485 support for PTZ or keyboard connections, and mobile access for iPhone and Android.
- Durable Build: Operates under a wide range of conditions (-10°C to 50°C, 10% to 90% humidity) with dimensions of 445 x 436 x 90mm.
- Eco-Efficient Power: Consumes ≤50W (without HDD), powered by ATX-200W power supply.
This 32-Channel DVR is your all-in-one solution for a secure and efficient surveillance system. Perfect for homes, businesses, and other critical spaces, it combines advanced functionality with user-friendly design to keep you in control.
| System Compression | H.265/H.264 |
|---|
| Operating System | Embedded Linux |
|---|
| Analog Camera Input | 32CH BNC
TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) |
|---|
| IP Camera Input | 8CH (up to 16CH), 8MP@30fps |
|---|
| Video Output | HDMI1 x 1:4K
HDMI2 x 1: 1920 × 1080
VGA x 1: 1920 × 1080
BNC x 1: CVBS
HDMI1 & VGA output the same source. HDMI2 is independent |
|---|
| Audio In | 16CH RCA |
|---|
| Audio Out | 1CH RCA |
|---|
| 2 Way Audio | Yes (Takes up channel one audio input) |
|---|
| Alarm In | 16CH |
|---|
| Alarm Out |
8CH
|
|---|
Alarm Mode | Manual, motion, exception, smart event |
|---|
| Recording Capability |
Analog Channel:
4K@ 8fps (PAL/NTSC)
4K Lite@12fps/15fps (PAL/NTSC)
5MP@12fps (PAL / NTSC)
5MP Lite@20fps (PAL / NTSC)
4MP/3MP@12fps/ 15fps (PAL / NTSC)
4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC)
IP Channel: 8MP@ 25fps / 30fps (PAL / NTSC
|
|---|
| Record Mode |
Manual, timed, motion |
|---|
| Playback Search | Time slice / time / event / tag search |
|---|
| Playback Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|---|
| Playback Function | Play, pause, FF, FB, digital zoom |
|---|
| Network Interface | RJ45 1000Mbps × 2 |
|---|
| Incoming Bandwidth | 48Mbps (max. 96Mbps) |
|---|
| Outgoing Bandwidth | 192Mbps |
|---|
| Network Protocol | TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP |
|---|
| Network Max. Users | 20 users online |
|---|
| Mobile | iPhone, Android |
|---|
| Internal HDD | 8x SATA, max 10T per HDD. RAID 0,1,5,6,10 |
|---|
| RS485 | Yes (full-duplex), connect to PTZ or keyboard |
|---|
| USB | USB 2.0 x 2, USB 3.0 x 1 |
|---|
| Power Supply | ATX-200W |
|---|
| Power Consumption | ≤ 50W ( without HDD ) |
|---|
Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
|---|
| Dimensions | 445 x 436 x 90mm (W x D x H) |
|---|
