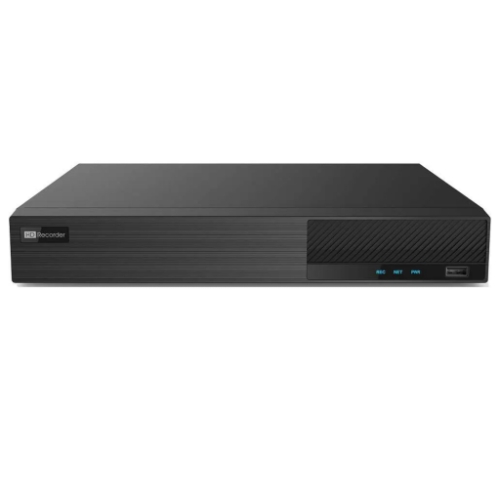

16CH | 8MP | 2 SATA | HDMI/VGA | iOS/Android | 8 RCA Audio Inputs | 16/4 Alarm IO
Ensure unmatched security and reliability with this cutting-edge 16-Channel DVR. Designed for both analog and IP camera systems, this DVR delivers seamless performance with robust features to meet your surveillance needs.
Key Features:
- High-Efficiency Compression: Supports H.265/H.264 for optimized storage and bandwidth usage.
- Dual Input Compatibility:
- Analog: 16CH BNC for TVI/AHD/CVI cameras, up to 8MP (4K) at 15fps.
- IP: Expandable to 16 channels, up to 8MP resolution.
- Crystal-Clear Video Output:
- HDMI: 4K
- VGA: 1080p
- BNC: CVBS
- Enhanced Audio: 8CH RCA audio inputs, 1CH RCA output, and 2-way audio for real-time communication.
- Smart Alarm System: Features 16 alarm inputs and 4 outputs, with advanced modes like manual, motion, exception, and smart events.
- Advanced Recording & Playback:
- Analog recording up to 4K@8fps.
- IP recording up to 4K@30fps
- Intelligent playback with time/event/tag search and color-coded smart search for quick identification.
- Functions include play, pause, fast forward/backward, and digital zoom.
- High-Speed Networking: RJ45 1000Mbps interface, supporting up to 10 users online and protocols like TCP/IP, ONVIF, RTSP, and more.
- Storage Versatility: Dual SATA support with a maximum of 10TB per HDD and an additional eSATA port.
- User-Friendly Connectivity: USB 2.0 and USB 3.0 interfaces, RS485 support for PTZ or keyboard connections, and mobile access for iPhone and Android.
- Durable Build: Operates under a wide range of conditions (-10°C to 50°C, 10% to 90% humidity) with dimensions of 380 x 268 x 45mm.
- Eco-Efficient Power: Consumes ≤30W (without HDD), powered by DC 12V/4A.
This 16-Channel DVR is your all-in-one solution for a secure and efficient surveillance system. Perfect for homes, businesses, and other critical spaces, it combines advanced functionality with user-friendly design to keep you in control.
| System Compression | H.265/H.264 |
|---|
| Operating System | Embedded Linux |
|---|
| Analog Camera Input | 16CH BNC
TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) |
|---|
| IP Camera Input | 8CH (up to 16CH), 8MP |
|---|
| Video Output | HDMI x 1:4K
VGA x 1: 1920 × 1080
BNC x 1: CVBS |
|---|
| Audio In | 8CH RCA |
|---|
| Audio Out | 1CH RCA |
|---|
| 2 Way Audio | Yes (Takes up channel one audio input) |
|---|
| Alarm In | 8CH |
|---|
| Alarm Out |
2CH
|
|---|
Alarm Mode | Manual, motion, exception, smart event |
|---|
| Recording Capability |
Analog Channel:
4K@ 8fps
4K Lite@15fps
5MP@12fps
5MP Lite@20fps
4MP/3MP@15fps
4MP Lite/1080P/720P/WD1/D1@30fps
IP Channel: 8MP@30fps
|
|---|
| Record Mode |
Manual, timed, motion, smart event |
|---|
| Playback Search | Time slice / time / event / tag search |
|---|
| Playback Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|---|
| Playback Function | Play, pause, FF, FB, digital zoom |
|---|
| Network Interface | RJ45 1000Mbps × 1 |
|---|
| Incoming Bandwidth | 32Mbps |
|---|
| Outgoing Bandwidth | 96Mbps |
|---|
| Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
|---|
| Network Max. Users | 10 users online |
|---|
| Mobile | iPhone, Android |
|---|
| Internal HDD | 2x SATA, max 10T per HDD, 1x eSATA |
|---|
| RS485 | Yes (full-duplex), connect to PTZ or keyboard |
|---|
| USB | USB 2.0 x 1, USB 3.0 x 1 |
|---|
| Power Supply | DC 12V /4A |
|---|
| Power Consumption | ≤ 30W ( without HDD ) |
|---|
Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
|---|
| Dimensions | 380 x 268 x 45mm (W x D x H) |
|---|
