16CH | 5MP | 1 SATA | HDMI/VGA | iOS/Android

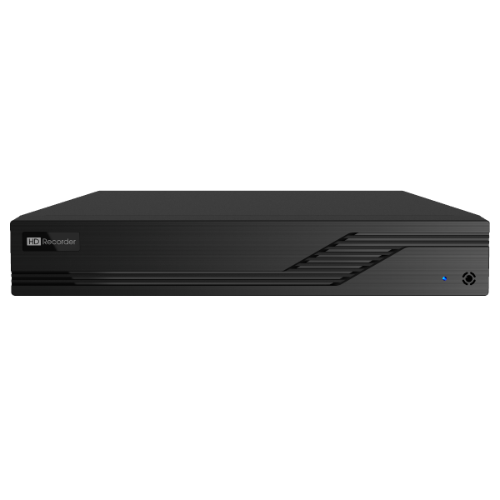

Ensure unmatched security and reliability with this cutting-edge 16-Channel CCTV DVR. Designed for both analog and IP camera systems, this DVR delivers seamless performance with robust features to meet your surveillance needs.
Key Features:
- High-Efficiency Compression: Supports H.265/H.264 for optimized storage and bandwidth usage.
- Dual Input Compatibility:
- Analog: 16CH BNC for TVI/AHD/CVI cameras, up to 5MP.
- IP: Expandable to 16 channels, up to 5MP resolution at 30fps.
- Crystal-Clear Video Output:
- HDMI: 1080p
- VGA: 1080p
- BNC: CVBS
- Audio: 1CH RCA audio inputs, 1CH RCA output, and 2-way audio for real-time communication.
- Advanced Recording & Playback:
- Analog recording up to 5MP Lite@10fps.
- IP recording up to 5MP@30fps.
- Intelligent playback with time/event/tag search and color-coded smart search for quick identification.
- Functions include play, pause, fast forward/backward, and digital zoom.
- Networking: RJ45 100Mbps interface, supporting up to 10 users online and protocols like TCP/IP, RTSP, and more.
- Storage Versatility: Single SATA support with a maximum of 10TB.
- User-Friendly Connectivity: USB 2.0 interfaces, RS485 support for PTZ or keyboard connections, and mobile access for iPhone and Android.
- Durable Build: Operates under a wide range of conditions (-10°C to 50°C, 10% to 90% humidity) with dimensions of 255 x 234 x 42mm.
- Eco-Efficient Power: Consumes ≤10W (without HDD), powered by DC 12V/3A.
This 16-Channel CCTV DVR is your all-in-one solution for a secure and efficient surveillance system. Perfect for homes, businesses, and other critical spaces, it combines advanced functionality with user-friendly design to keep you in control.
| System Compression | H.265/H.264 |
|---|
| Operating System | Embedded Linux |
|---|
| Analog Camera Input | 16CH BNC
TVI/AHD/CVI: 5MP, 4MP, 1080P, 720P, WD1 |
|---|
| IP Camera Input | 8CH (up to 16CH), 5MP |
|---|
| Video Output | HDMI x 1: 1920 × 1080
VGA x 1: 1920 × 1080
BNC x 1: CVBS |
|---|
| Audio In | 1CH RCA |
|---|
| Audio Out | 1CH RCA |
|---|
| 2 Way Audio | Yes (Takes up channel one audio input) |
|---|
| Alarm In | NA |
|---|
| Alarm Out |
NA
|
|---|
Alarm Mode | NA |
|---|
| Recording Capability |
Analog Channel:
5MP Lite@10fps
4MP Lite/1080P@15fps
1080P Lite/720P/WD1@30fps
IP Channel: 5MP@30fps
|
|---|
| Record Mode |
Manual, timer, motion, smart event |
|---|
| Playback Search | Time slice / time / event / tag search |
|---|
| Playback Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|---|
| Playback Function | Play, pause, FF, FB, digital zoom |
|---|
| Network Interface | RJ45 100Mbps × 1 |
|---|
| Incoming Bandwidth | 32Mbps |
|---|
| Outgoing Bandwidth | 80Mbps |
|---|
| Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
|---|
| Network Max. Users | 10 users online |
|---|
| Mobile | iPhone, Android |
|---|
| Internal HDD | 1x SATA, max 10T per HDD |
|---|
| RS485 | Yes (full-duplex), connect to PTZ or keyboard |
|---|
| USB | USB 2.0 x 2 |
|---|
| Power Supply | DC 12V /3A |
|---|
| Power Consumption | ≤ 10W ( without HDD ) |
|---|
Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
|---|
| Dimensions | 255 x 234 x 42mm (W x D x H) |
|---|
