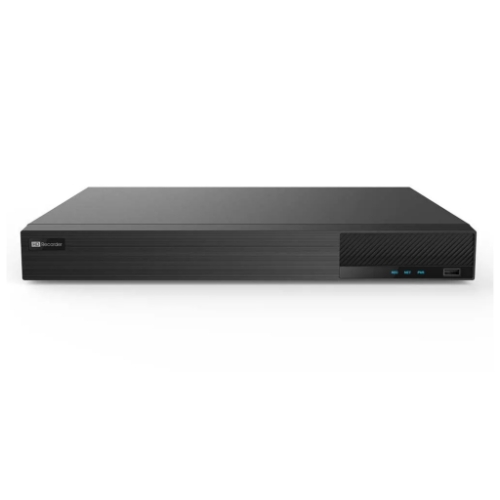

AceLevel 4 Channel DVR: 8MP, H.265, 1 SATA, HDMI/VGA

TVI/AHD/CVI/IP | 8MP | 1 SATA | H.265/H.264 | HDMI/VGA

  • 4ch BNC camera input
  • Additional 2ch IP camera input
  • 4ch simultaneous playback
  • 1x SATA, up to 10TB (not included). 1x eSATA
  • 4ch RCA audio input, 1ch RCA audio output, 2 Way Audio
  • 4ch alarm input, 1ch alarm output
  • HDMI 4K output, VGA 1080P output
Price: $169.99


    Update price

    TVI/AHD/CVI/IP | 4-ch Analog + 2-ch IP | 8MP | 1 SATA | H.265/H.264 | Simultaneous HDMI/VGA

    AI Functions

    Smart Motion Detection: 4CH

    Smart Perimeter Detection: 1CH

    System CompressionH.265/H.264
    Operating SystemEmbedded Linux
    Analog Camera Input4CH BNC
    TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live)
    IP Camera Input2CH (up to 6CH), 8MP@20fps or 30fps @ resolutions lower than 8MP
    Video Output

    HDMI x 1:4K
    VGA x 1: 1920 × 1080
    BNC x 1: CVBS

    Audio In4CH RCA
    Audio Out1CH RCA
    2 Way AudioYes (Takes up channel one audio input)
    Alarm In

    4CH

    Alarm Out

    1CH


    Alarm Mode

    Manual, motion, exception, sensor, smart event

    Recording Capability

    Analog Channel:

    4K@ 8fps
    4K Lite@15fps
    5MP@12fps
    5MP Lite@20fps
    4MP/3MP@15fps
    4MP Lite/1080P/720P/WD1/D1@30fps

    IP Channel: 8MP@20fps or 30fps @ resolutions lower than 8MP


    Record Mode

    Manual, timed, motion, smart event

    Playback SearchTime slice / time / event / tag search
    Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
    Playback FunctionPlay, pause, FF, FB, digital zoom
    Network Interface

    RJ45 100Mbps × 1

    Incoming Bandwidth16Mbps (max. 40Mbps)
    Outgoing Bandwidth40Mbps
    Network ProtocolTCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP,
    Websocket, SNMP, IGMP
    Network Max. Users

    10 users online

    MobileiPhone, Android
    Internal HDD

    1x SATA, max 10T per HDD, 1x eSATA

    RS485Yes (full-duplex), connect to PTZ or keyboard
    USB

    USB 2.0 x 2

    Power Supply

    DC 12V /1.5A

    Power Consumption

    ≤ 10W ( without HDD )

    Operating Conditions

    -10 ～ 50 ℃，10% ～ 90% humidity

    Dimensions

    300 x 249 x 45mm (W x D x H)

    Ensure unmatched security and reliability with this cutting-edge 4-Channel CCTV DVR. Designed for both analog and IP camera systems, this DVR delivers seamless performance with robust features to meet your surveillance needs.

    Key Features:

    • High-Efficiency Compression: Supports H.265/H.264 for optimized storage and bandwidth usage.
    • Dual Input Compatibility:
      • Analog: 4CH BNC for TVI/AHD/CVI cameras, up to 8MP (4K) at 15fps.
      • IP: Expandable to 6 channels, up to 8MP resolution.
    • Crystal-Clear Video Output:
      • HDMI: 4K
      • VGA: 1080p
      • BNC: CVBS
    • Enhanced Audio: 4CH RCA audio inputs, 1CH RCA output, and 2-way audio for real-time communication.
    • Smart Alarm System: Features 4 alarm inputs and 1 outputs, with advanced modes like manual, motion, exception, and smart events.
    • Advanced Recording & Playback:
      • Analog recording up to 4K@8fps.
      • IP recording up to 4K@20fps
      • Intelligent playback with time/event/tag search and color-coded smart search for quick identification.
      • Functions include play, pause, fast forward/backward, and digital zoom.
    • High-Speed Networking: RJ45 1000Mbps interface, supporting up to 10 users online and protocols like TCP/IP, RTSP, and more.
    • Storage Versatility: Dual SATA support with a maximum of 10TB per HDD and an additional eSATA port.
    • User-Friendly Connectivity: USB 2.0 interfaces, RS485 support for PTZ or keyboard connections, and mobile access for iPhone and Android.
    • Durable Build: Operates under a wide range of conditions (-10°C to 50°C, 10% to 90% humidity) with dimensions of 300 x 249 x 45mm.
    • Eco-Efficient Power: Consumes ≤10W (without HDD), powered by DC 12V/4A.

    This 4-Channel CCTV DVR is your all-in-one solution for a secure and efficient surveillance system. Perfect for homes, businesses, and other critical spaces, it combines advanced functionality with user-friendly design to keep you in control.
