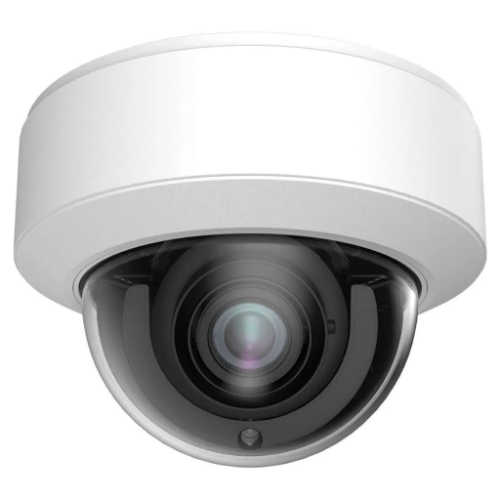

AceLevel 8MP IR Fixed-focal Dome Network Camera 2.8mm Lens Built-in Mic

  • 8MP 1/2.8" CMOS image sensor
  • Built-in IR LED, the max. illumination distance is 20~30m (65~98 feet)
  • 2.8mm fixed lens
  • Supports max. 256GB Micro SD card
  • Built-in microphone
  • PoE / 12VDC
  • IP67 Protection
  • NDAA COMPLAINT
Price: $159.99


    Product Pricing Table

    Quantity

    		8+

     Price Each

    		$157.99
    Image Sensor1/2.8" CMOS
    Max. Resolution3840x2160
    Electronic Shutter1/1s ~ 1/100000s
    Iris TypeFixed
    Min. Illumination0.01 lux @ F1.2, AGC ON; 0 lux with IR
    0.02 lux@F1.6, AGC ON; 0 lux with IR
    Lens2.8mm@F1.6, horizontal FOV: 109.7°; vertical FOV: 77.2°; diagonal FOV: 116.9°
    FocusFixed
    Wide Dynamic Range120dB
    BLC & HLCSupported
    Angle AdjustmentManual adjustment
    Pan: 0°~355°; Tilt: 0°~67°; Rotation: 0°~355°
    Video CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEG
    Resolution8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944),
    4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),
    1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
    Main Stream

    8MP & Lower (1~30fps)

    HFR Mode: 1080p/720p (1~60fps)

    Sub Stream720P/D1/CIF/480 × 240 (1~30fps)
    Additional StreamsThird Stream: D1/CIF/480 × 240 (1~30fps)
    Bit Rate64Kbps ~12Mbps
    Bit Rate TypeVBR / CBR
    Image SettingsROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.
    ROISupported
    Network PortRJ45
    Audio1ch audio input, 1ch built-in microphone
    Alarm1ch alarm input, 1ch alarm output
    StorageBuilt-in microSD card slot, max. 256GB (not included)
    Network ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
    Interface ProtocolONVIF
    Smart AlarmMotion detection; SD card error; SD card full
    Smart Event

    Line crossing, intrusion detection (human/vehicle classification)

    Line crossing human/motor vehicle/non-motor vehicle counting

    Face detection and face capture
    General Function

    Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction

    PoEIEEE 802.3af
    Supplement Light RangeIR max. range 20~30m (65~98 feet)
    Ingress ProtectionIP67 & IK10
    Power SupplyPoE or 12VDC
    Power Consumption<9W
    Operating Conditions-30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
    Dimensions (mm)Φ 119 x 87.8
    Weight~0.64kg
    Mounting OptionsCeiling & wall
