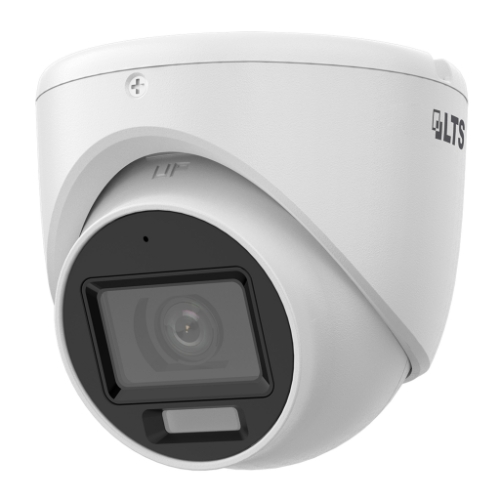

2MP | Hybrid White & IR Lights, 65 ft. Range
| Image Sensor | 2MP CMOS |
|---|
| Max. Resolution | 1920 x 1080 |
|---|
| Electronic Shutter | 1/30s ~ 1/50,000s |
|---|
| Min. Illumination | 0.02 lux @ (F2.2, AGC on), 0 lux with Illuminators on |
|---|
| Lens | 2.8mm, horizontal FOV: 97°; vertical FOV: 54°; diagonal FOV: 113° |
|---|
| Focus | Fixed |
|---|
| Wide Dynamic Range | Digital WDR |
|---|
| BLC & HLC | Supported |
|---|
| Angle Adjustment | Manual adjustment
Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
|---|
| Video Output | Switchable TVI/AHD/CVI/CVBS
|
|---|
| Resolution | (2560x1440), 1080P ( 1920x1080 ), 720P ( 1280x720 ) |
|---|
| Frame Rate | TVI: 1080p @ 30 fps
AHD: 1080p @ 30 fps
CVI: 1080p @ 30 fpsCVBS: PAL/NTSC |
|---|
|
|
| Supplement Light Range | White Light & IR Illuminator max. range 20m (65 feet) |
|---|
| Ingress Protection | IP67 |
|---|
| Power Supply | 12VDC, Max 3.5W |
|---|
| Power Consumption | <3.5W |
|---|
| Storage Conditions | -40°C ~ 60°C (-40°F~140°F), Humidity: less than 90% (non-condensing) |
|---|
| Operating Conditions | -40°C ~ 60°C (-40°F~140°F), Humidity: less than 90% (non-condensing) |
|---|
| Dimensions (mm) | Φ85.1 x 80 (Φ 3.4 × 3.1 in.) |
|---|
| Weight | ~0.29kg (~0.64lbs) |
|---|
| Mounting Options | Ceiling & wall |
|---|
