  • LTS CMIP1342WE-28MDA 4MP Hybrid Light Turret Network Camera 2.8mm Lens Built-in Mic - CAM-CMIP1342WE-28MDA
  • LTS CMIP1342WE-28MDA 4MP Hybrid Light Turret Network Camera 2.8mm Lens Built-in Mic - CAM-CMIP1342WE-28MDA
  • LTS CMIP1342WE-28MDA 4MP Hybrid Light Turret Network Camera 2.8mm Lens Built-in Mic - CAM-CMIP1342WE-28MDA

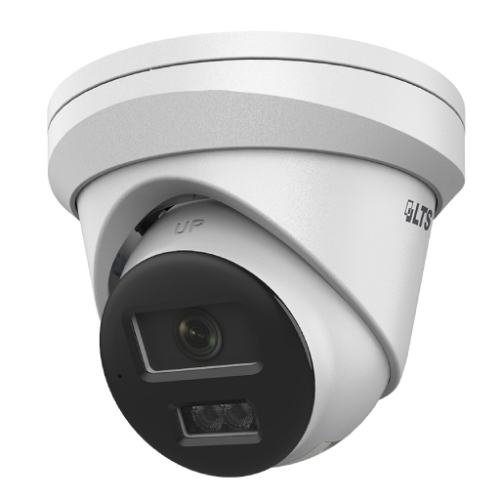

LTS CMIP1342WE-28MDA 4MP Hybrid Light Turret Network Camera 2.8mm Lens Built-in Mic

  • 4MP 1/3" CMOS image sensor
  • Built-in white light and IR LEDs, the max. illumination distance is 30m (98 feet)
  • 2.8mm fixed lens
  • Supports max. 512GB Micro SD card
  • Built-in microphone
  • PoE / 12VDC
  • IP67 Protection
Price: $149.99

    4MP | MD2.0 | Hybrid White & IR Lights, 98 ft. Range | PoE

    Image Sensor1/3" CMOS
    Max. Resolution
    2560x1440
    Electronic Shutter1/3s ~ 1/100,000s
    Iris TypeFixed
    Min. Illumination0.005 lux @ (F1.6, AGC on), 0 lux with Illuminators on
    Lens2.8mm, horizontal FOV: 98°; vertical FOV: 54°; diagonal FOV: 114°
    FocusFixed
    Wide Dynamic Range120dB
    BLC & HLCSupported
    Angle AdjustmentManual adjustment
    Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360°
    Video CompressionMain Stream: H.265 / H.265+ / H.264 / H.264+
    Sub Stream: H.265 / H.264 / MJPEG
    Resolution(2560x1440), 1080P ( 1920x1080 ), 720P ( 1280x720 )
    Main Stream20fps @ (2560x1440)30fps @ 1080P (1920x1080) / 720P (1280x720)
    Sub Stream24fps @ 1280x720, 640x480, 640x360
    Additional StreamsNone
    Bit Rate32Kbps ~8Mbps
    Bit Rate TypeVBR / CBR
    Image Settings
    Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
    ROISupported
    Network PortRJ45
    Audio1ch built-in microphone
    StorageBuilt-in microSD card slot, max. 512GB (not included)
    Network Protocol
    TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
    Interface ProtocolONVIF (Profile S, Profile T, Profile G)
    Smart AlarmMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
    General Function
    Heartbeat, anti-banding, mirror, password protection, password reset via email
    PoEIEEE 802.3af
    Supplement Light RangeWhite Light & IR Illuminator max. range 30m (98 feet)
    Ingress ProtectionIP67
    Power SupplyPoE or 12VDC
    Power Consumption<6.5W
    Storage Conditions-30°C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
    Operating Conditions-30°C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
    Dimensions (mm)Φ110 x 85.3 (Φ 4.3 × 3.4 in.)
    Weight~0.32kg (~0.7lbs)
    Mounting OptionsCeiling & wall
