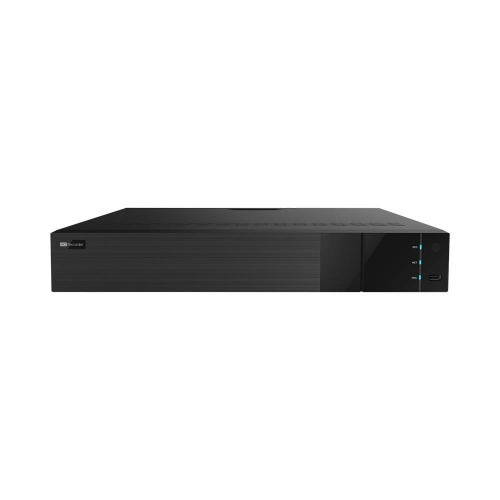

32CH | 5MP | 5 SATA | HDMI/VGA | iOS/Android | 16 RCA Audio Inputs | 16/4 Alarm IO
Ensure unmatched security and reliability with this cutting-edge 32-Channel DVR. Designed for both analog and IP camera systems, this DVR delivers seamless performance with robust features to meet your surveillance needs.
Key Features:
- High-Efficiency Compression: Supports H.265/H.264 for optimized storage and bandwidth usage.
- Dual Input Compatibility:
- Analog: 32CH BNC for TVI/AHD/CVI cameras, up to 5MP
- IP: Expandable to 24 channels, up to 5MP resolution
- Crystal-Clear Video Output:
- HDMI: 1080p
- VGA: 1080p
- BNC: CVBS
- Enhanced Audio: 16CH RCA audio inputs, 1CH RCA output, and 1CH 2-way audio for real-time communication.
- Smart Alarm System: Features 16 alarm inputs and 4 outputs, with advanced modes like manual, motion, exception, and smart events.
- Advanced Recording & Playback:
- Analog recording up to 5MP Lite@10fps.
- IP recording up to 5MP@30fps
- Intelligent playback with time/event/tag search and smart search for quick identification.
- Functions include play, pause, fast forward/backward, and digital zoom.
- High-Speed Networking: RJ45 1000Mbps interface, supporting up to 15 users online.
- Storage Versatility: 4x SATA support with a maximum of 10TB per HDD and 1x eSATA
- User-Friendly Connectivity: USB 2.0 and USB 3.0 interfaces, RS485 support for PTZ or keyboard connections, and mobile access for iPhone and Android.
- Durable Build: Operates under a wide range of conditions (-10°C to 50°C, 10% to 90% humidity) with dimensions of 440 x 390 x 70mm.
- Eco-Efficient Power: Consumes ≤30W (without HDD), powered by ATX-250W power supply.
This 32-Channel DVR is your all-in-one solution for a secure and efficient surveillance system. Perfect for homes, businesses, and other critical spaces, it combines advanced functionality with user-friendly design to keep you in control.
| System Compression | H.265/H.264 |
|---|
| Operating System | Embedded Linux |
|---|
| Analog Camera Input | 32CH BNC |
|---|
| IP Camera Input | 8CH (up to 24CH), 5MP@30fps |
|---|
| Video Output | HDMI1 x 1:1920 × 1080
VGA x 1: 1920 × 1080
BNC x 1: CVBS |
|---|
| Audio In | 16CH RCA |
|---|
| Audio Out | 1CH RCA |
|---|
| 2 Way Audio | Yes (Takes up channel one audio input) |
|---|
| Alarm In | 16CH |
|---|
| Alarm Out |
4CH
|
|---|
Alarm Mode | Manual, motion, exception, smart event |
|---|
| Recording Capability |
Analog Channel:
5MP Lite @10fps (PAL / NTSC)
4MP Lite/1080P @ 12fps (PAL) / 15fps (NTSC)
1080P Lite/720P/WD1/D1 @ 25fps (PAL) /30fps (NTSC)
IP Channel: 5MP@ 25fps (PAL) / 30fps (NTSC)
|
|---|
| Record Mode |
Manual, timed, motion |
|---|
| Playback Search | Time slice / time / event / tag search / smart search |
|---|
|
| Playback Function | Play, pause, FF, FB, digital zoom |
|---|
| Network Interface | RJ45 1000Mbps × 2 |
|---|
| Incoming Bandwidth | 40Mbps |
|---|
| Outgoing Bandwidth | 160Mbps |
|---|
| Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
|---|
| Network Max. Users | 15 users online |
|---|
| Mobile | iPhone, Android |
|---|
| Internal HDD | 4x SATA, max 10T per HDD.1x eSATA |
|---|
| RS485 | Yes (full-duplex), connect to PTZ or keyboard |
|---|
| USB | USB 2.0 x 2, USB 3.0 x 1 |
|---|
| Power Supply | ATX-250W |
|---|
| Power Consumption | ≤ 30W ( without HDD ) |
|---|
Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
|---|
| Dimensions | 4450 x 390 x 70mm (W x D x H) |
|---|
