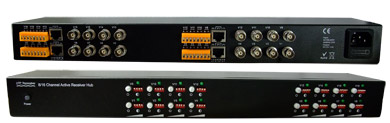

16 Channel Active Reciever HUB
Availability: In Stock
Usually ships In 1-2 Business Days
| Transceiver Type |
16CH Video Receiver (Active) |
| Video |
Frequency Response Range: DC-6MHz; Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type |
| Wire Type |
24AWG UTP CAT5 or higher; DC loop resistance ≦18Ω/ 100m; Differential capacitance: 62pF/m (max) |
| Impedance |
UTP or Connection or RJ-45: 100Ω; BNC Coax:75Ω |
| Power |
AC100-240V 50/60Hz |
| Transient Protection |
6KV 10 x 700 us IEC61000-4-5 |
| Dimensions |
17" x 3.3" x 1.7"
|
| Weight (lb) |
2.9 |
